快速迴轉夾頭/固定型夾頭專用副爪

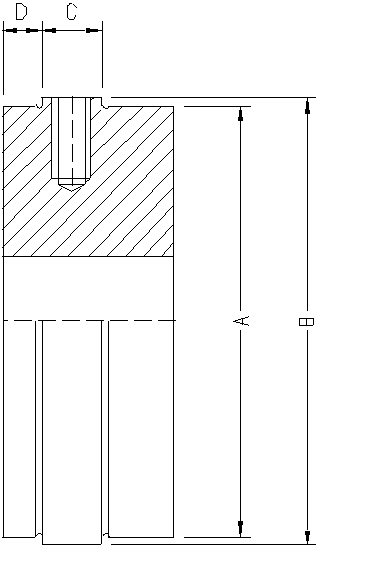

專用副爪尺寸與適用產品
| 型號A | A | B | C | D | 安裝螺絲 | 適用夾頭型號 |
| C-25 | 45mm (1.77") |
47.5mm (1.87") |
7mm (0.28") |
5.0mm (0.20") |
M5x10 | FR5-25 /FR5-25 |
| C-40 | 65mm (2.56") |
67.5mm (2.66") |
9mm (0.35") |
6.0mm (0.24") |
M6x12 | FR7-40/FR7-40 FR-40/FR-40/FR-40 |
| C-70 | 105mm (4.13") |
107.5mm (4.23") |
9mm (0.35") |
6.0mm (0.24") |
M6x12 | FR7-70/FR7-70/ FR9-90/FR-70/CAF-70 |
| C-120 | 140mm (5.51") |
143.5mm (5.65") |
9mm (0.35") |
6.0mm (0.24") |
M6x14 | JH9-120 |
根據工件外型與夾持需求所設計的專用夾爪
